Best Shaft Alignment Chain Clamp Sets for Precise Motor Alignment
If you need fast, accurate shaft alignment for motors, pumps, or compressors, these shaft alignment chain clamp sets are designed to help. They suit professionals who want quick setup, durable construction, and reliable readings. The top picks below are best for varying shaft diameters, different indicator styles, and worksite versatility—from shop floors to field service. The buyer will benefit from clear, comparison-friendly details and practical usage notes.
| Product | Best For | Key Benefit |
|---|---|---|
| Starrett Shaft Alignment Chain Clamp Set (5″, 7-7/16″, 9″) | General purpose alignment | Lightweight anodized aluminum with sturdy indicators |
| Starrett Shaft Alignment Chain Clamp Set with Case (5″, 7-7/16″, 9″) | Precision tasks with versatile indicators | Includes 196B5 indicator and snug for stable readings |
| Starrett Shaft Alignment Clamp Set (5″, 7-7/16″, 9″) | Rigid setup with chain clamps | Durable anodized aluminum, three post lengths |
| Starrett Shaft Alignment Clamp Only (up to 7-1/2″ Shaft) | Compact setups | Lightweight, adjustable posts, extended radial clearance |
| Starrett Shaft Alignment Clamp Set (5″, 7-7/16″, 9″) with Case (S668BZ) | All-in-one ready-to-go kit | Includes case, two extension plates, three posts |
Starrett Shaft Alignment Clamp Set, 3/8″ Diameter
Best for: Shops and technicians performing general shaft alignment on motors, pumps, and compressors. This 3/8″ diameter clamp set is designed for accurate, repeatable readings with minimal setup time. The lightweight black anodized aluminum construction reduces hand fatigue during repeated alignments. Included rigid 3/8″ diameter stainless steel indicator posts come in three lengths (5″, 7-7/16″, 9″), supporting multiple shaft heights and mounting configurations.
Why selected: Its combination of portability and robust post options makes it a strong all-around choice for frequent alignment tasks. The set tackles both radial and angular misalignment, improving overall equipment performance when properly applied.
Caution: For very large or awkward assemblies, verify post length compatibility with your shaft dimensions to ensure full articulation range.

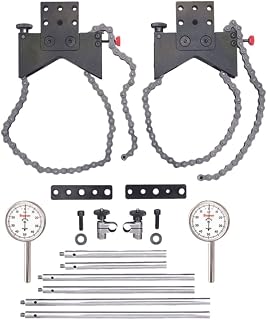

Starrett Shaft Alignment Chain Clamp Set with Case
Best for: Projects requiring high-precision indicators and a practical carrying case. This set includes the 196B5 indicator and a snug, plus extension plate and posts in the standard three lengths. Its gear-driven design and smooth movement support precise readings across a variety of tasks, including height, depth, and width checks during alignment.
Why selected: The included case helps protect sensitive components in transport or busy shop environments, and the indicator’s high-contrast dials aid readability in varied lighting conditions.
Caution: The indicator range and mounting compatibility should be checked against your existing accessories to avoid misfit issues on specialized machines.
Starrett Shaft Alignment Clamp Set, 5-9″ Posts
Best for: Reaches and supports larger shaft diameters with extended post lengths. This kit provides precision alignment for motors, pumps, and compressors, using 5″, 7-7/16″, and 9″ posts. Durable anodized aluminum and stainless steel components ensure longevity in demanding environments.
Why selected: Its versatility for a broad range of shaft sizes makes it a strong choice for workshops with varied equipment. The included chain clamp and extension plate contribute to reliable radial and angular alignment across different configurations.
Caution: The larger post lengths can require more space on stage or stand; ensure your work area accommodates the full geometry of the setup.
Starrett Shaft Alignment Clamp Only, Up to 7-1/2″ Shaft
Best for: Users who already own certain components and want a lightweight, adjustable clamp to suit a 7-1/2″ diameter range. It emphasizes radial clearance with an extension plate to broaden compatibility with angular misalignments and different mounting scenarios.
Why selected: It offers a lean, adaptable option when space or budget constraints favor a simpler kit. Its compatibility with a broad range of shafts is a practical plus for maintenance teams handling multiple machines.
Caution: It lacks some accessories found in larger kits; verify whether an extension plate or posts are needed for your specific application before purchase.
Starrett Shaft Alignment Clamp Set, 3/8″ Diameter with Case
Best for: Professional settings that prioritize ready-to-go readiness with a fitted case. This set emphasizes quick setup and accurate alignment of motors, pumps, and compressors, with 3/8″ posts across lengths of 5″, 7-7/16″, and 9″.
Why selected: The included case and post variety streamline field service and shop workflows, offering durable hardware and reliable, repeatable alignment results.
Caution: As with other compact kits, confirm post length compatibility with your specific shaft geometry to avoid restricted adjustment paths in tight spaces.
Buying Guide
What to consider when choosing a shaft alignment chain clamp set:
- Post lengths and shaft diameter range: Confirm the available post lengths (5″, 7-7/16″, 9″) meet your machine sizes. A wider diameter range is helpful for diverse equipment like motors, pumps, and compressors.
- Material and durability: Look for anodized aluminum and stainless steel components for lightness and longevity in demanding environments.
- Indicators and readability: High-contrast dials or digital options improve visibility in challenging lighting. Ensure compatibility with existing accessories or dovetail mounts.
- Included accessories: A case, extension plates, and snug components impact organization, transport, and setup speed on busy job sites.
- Setup time and ease of use: Kits advertised as “easy to use” typically reduce calibration time and minimize operator error.
- Portability vs. capability: Lighter kits are easier to carry; larger kits offer more flexibility for varied shafts but may be heavier to handle.
- Compatibility considerations: Ensure the kit’s clamps, posts, and indicators align with your installed machinery and mounting arrangements.
Frequently Asked Questions
- What is a shaft alignment chain clamp used for?
- Which post length is most versatile for common motors?
- Do I need a case with my clamp set?
- Can these kits handle large-diameter shafts?
- What should I check before purchasing a kit?
- Are indicator upgrades worth the extra cost?
FAQ Answers
Where appropriate, a shaft alignment chain clamp is used to align rotating shafts to minimize runout and vibration in connected equipment. Post lengths of 5″, 7-7/16″, and 9″ cover a wide range of applications.
A versatile setup often benefits from longer posts; they accommodate larger equipment and additional clearance needs for radial misalignment checks.
A protective case helps prevent damage to sensitive indicator components during transport and storage, and it supports quick deployment on-site.
Large-diameter shafts may require kits with extended range or additional extension plates to achieve accurate alignment across the full span.
When purchasing, consider compatibility with your existing accessories, the expected workload, and whether you prefer a ready-to-go kit or a modular option you can expand later.
Indicator upgrades are useful for improved readability and precision, especially in low-light environments or when high-precision measurements are required.
